PV Connection Approval Power Solar Cable

Product name: PV1-F photovoltaic cable

• Conductor material: IEC 60228, type 5 stranded tinned copper core
• Number of cores: single core
• Product specifications: 2.5mm2/4.0mm2/6.0mm2
• Rated current: 41A/55A/70A
• Rated voltage: DC: 1.8KV AC U0/U: 0.6KV / 1 KV
• Insulation material: radiation cross-linked low-smoke halogen-free flame-retardant polyolefin
• Sheath material: radiation cross-linked low-smoke halogen-free flame-retardant polyolefin
• Working environment temperature: -40℃～+90℃
• Service life: >25 years (-40℃～+90℃)
• Product Certification: TUV
• Cable characteristics: Photovoltaic special cables, which can meet the requirements of outdoor high mechanical strength and extreme
• conditions, heat resistance, cold resistance, abrasion resistance, corrosion resistance, ozone resistance, UV resistance, fire prevention; low
• smoke, halogen free, flame-free, flame retardant; flexible , Easy to peel, low space requirement, long service life.
• Installation conditions: outdoor or indoor

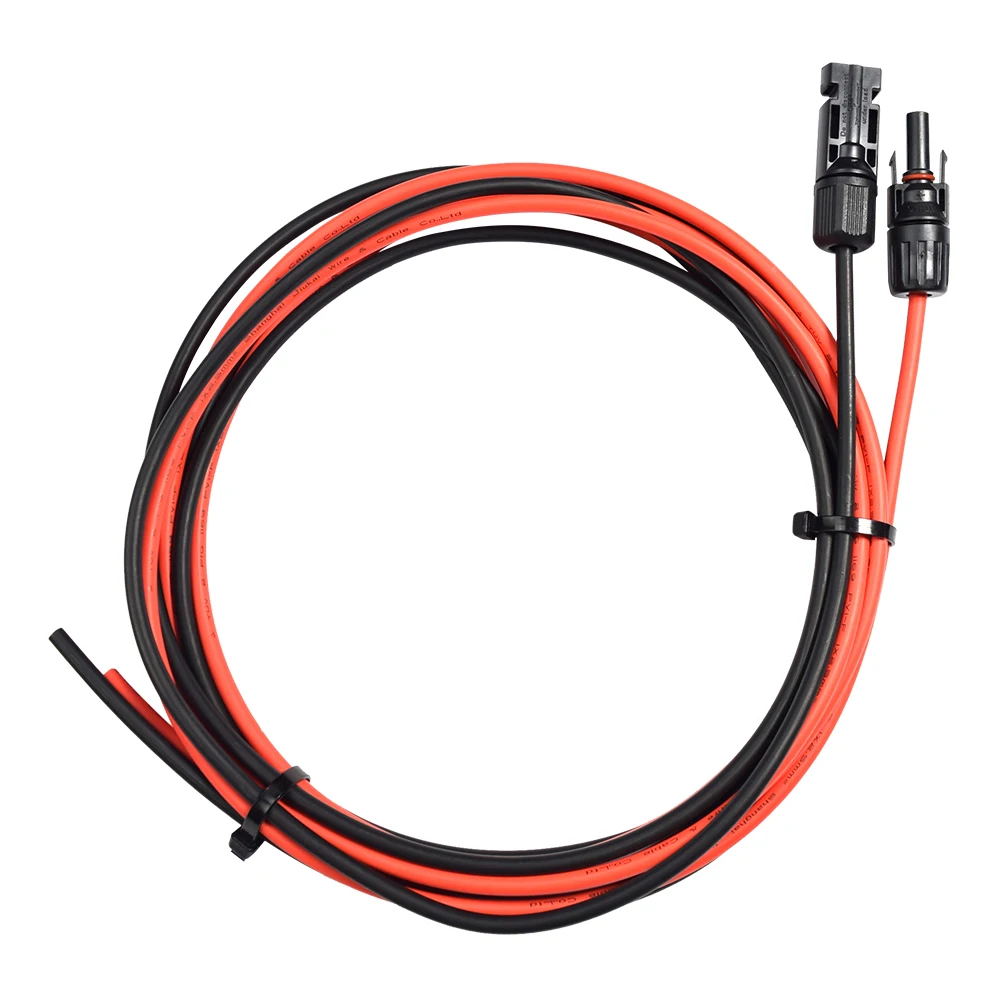

Package list

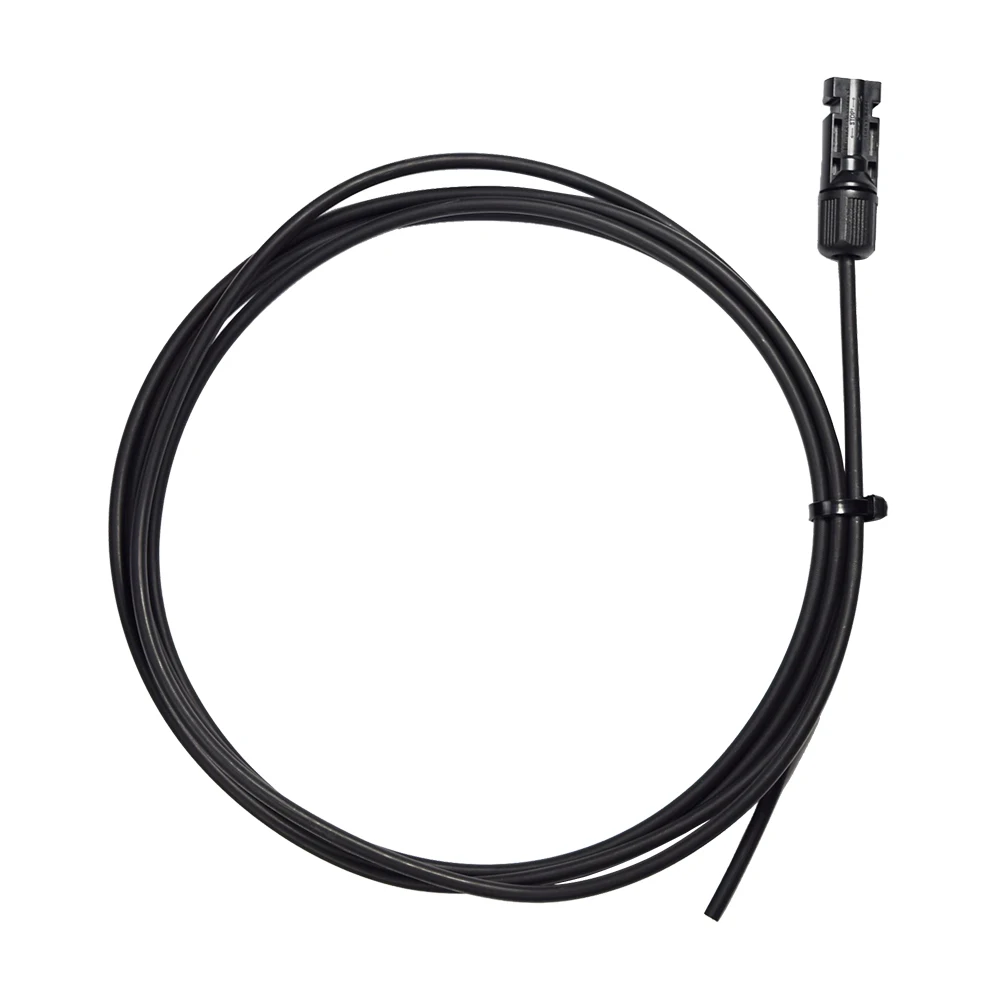

1. 10M PV solar extension Black cable

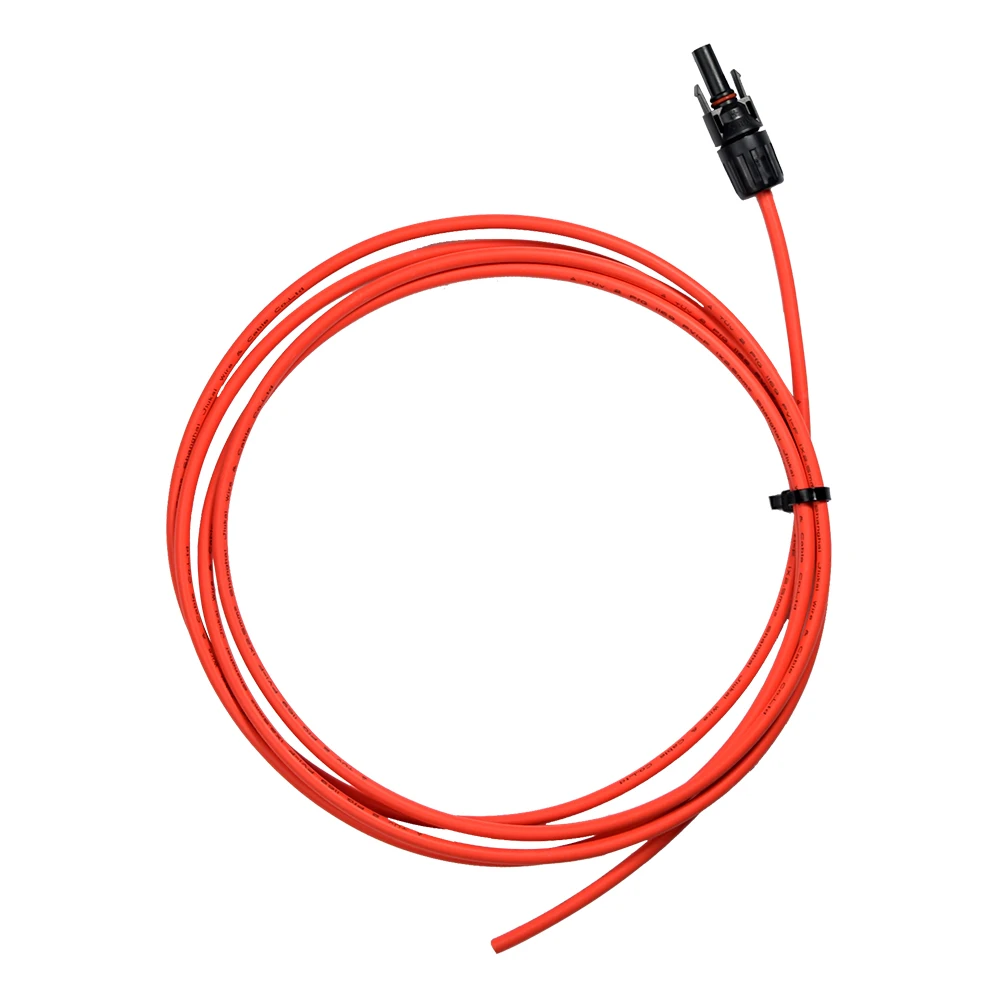

2. 10M PV solar extension Red cable
