Portable Solar Panel Battery charger Kit

• Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.
• Using the latest component packaging technology, thinner, lighter, softer and longer life.
• The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
• With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.
• The junction box has an IP67 waterproof design, which includes a bypass diode, and the circuit adopts input overcurrent protection and reverse protection design.
• The PV cables connectors for photovoltaic modules are used for outgoing cables. The outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connectors are easy to use, plug and play.
• This product is a solar module. It is recommended to be used with controllers and batteries.
  It can be used in a variety of scenarios such as RVs, households, camping, yachts, street lights and solar power stations.

• Maximum power(Pmax) 120W
• Output tolerance ± 3%
• Maximum system voltage 700V DC
• Open circuit voltage(Voc) 21.6V
• Short circuit current(Isc) 6.8 A
• Maximum power voltage(Vmp) 18V
• Maximum power current(Imp) 6.5A
• Cell efficiency 19.5%
• Operating temperature（NOCT） 45±2℃
• Temperature range -40℃～+80℃
• Number of cells 36pcs
• Weight 2200g

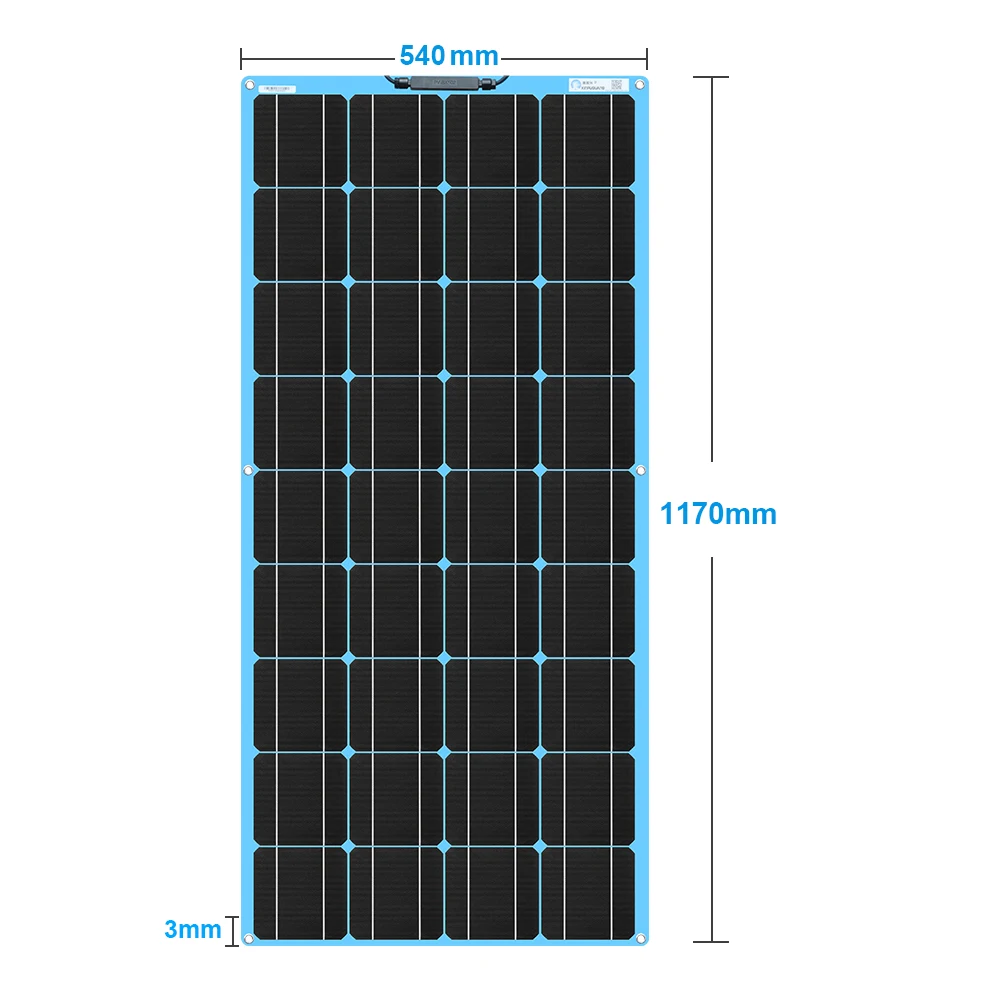

• Size 1170*540*3 mm
• Color blue
• Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

Package #1 120W solar panel

• 5*120w pcs solar panel (size 1170mm*540mm*2.5/3mm)

• 5*120w pcs solar panel (size 1170mm*540mm*2.5/3mm)
• 50A 12v/24v charge controller
• 1 set 3m Extension cable with PV connector
• 1 set 3m cable with alligator clip （connect to battery）
• 1 set 5 in 1 adapter
