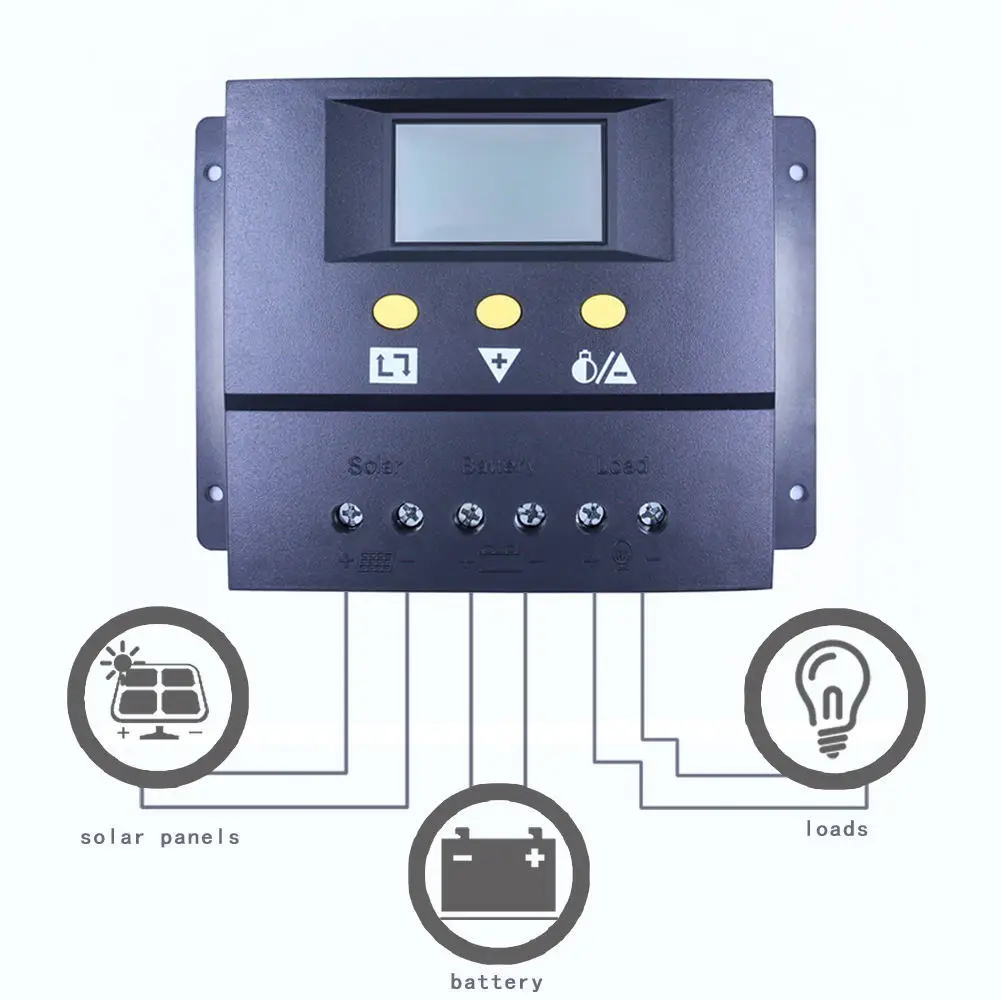

Product description:
- The LCD series controller is an intelligent, multi-purpose solar charge and discharge controller. This series of products is used
- The LCD display has a very user-friendly interface; the control parameters can be flexibly set to meet your application needs.
- LCD series controllers have the following features:
- ● Image LCD graphic symbol ● Simple button operation
- ●Automatic identification of system voltage level ●Intelligent PWM charging method
- ●Automatic temperature compensation ● Adjustable charge and discharge control parameters
- ●Settable load working mode ●Charge and discharge safety hours accumulation function
- ● Remote monitoring function (required) ● Battery reverse discharge protection
- ●Battery undervoltage protection ●Battery reverse connection protection
- ●Overload, short circuit protection
Specification
- Rated working voltage: 12/24V
- Rated working current: ≤48V
- Solar panel voltage: less than or equal to 48V
- Floating charge voltage (settable): 13.8V/27.6V
- Low voltage protection (settable): 10.7V/21.4V
- Low voltage recovery (settable): 12.5V/25.0V
- No-load loss: ≤30mA
- Loop voltage drop: ≤200mV
- Temperature compensation: -4mV/Cell/°C
Package list

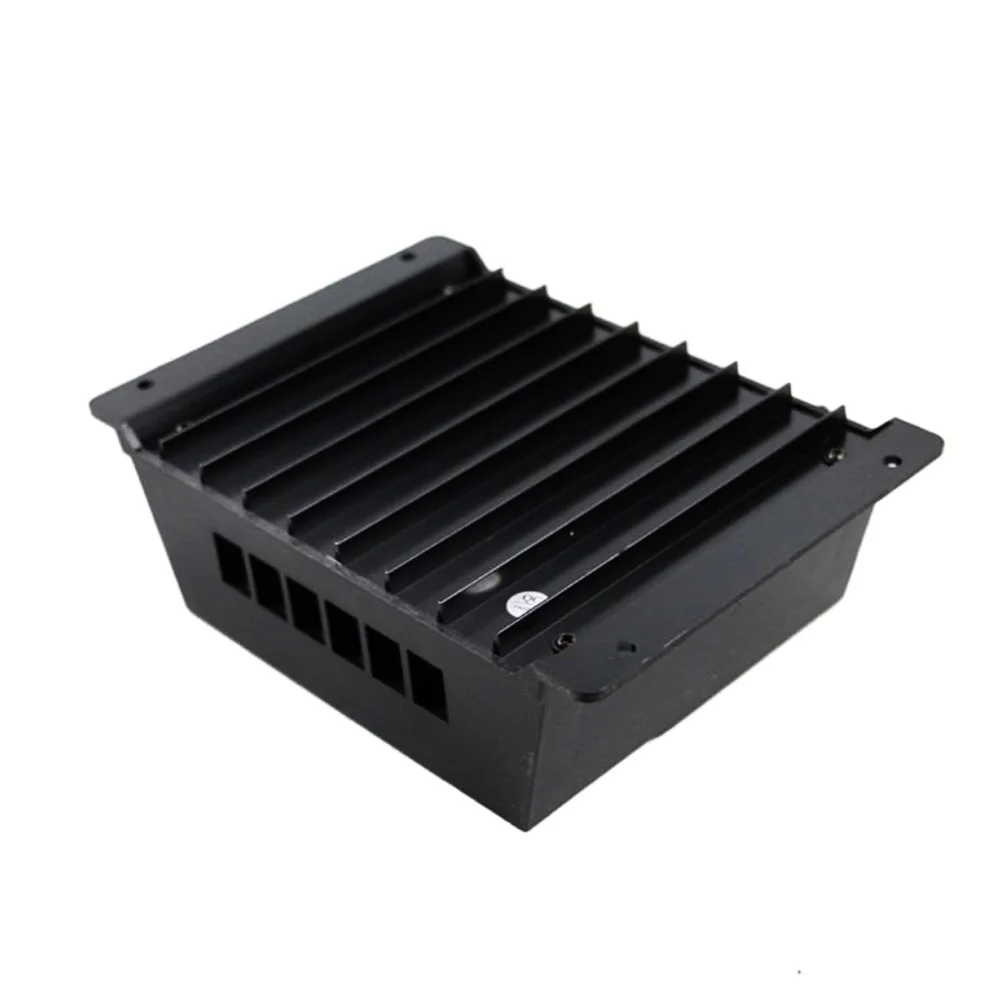

- 1*60A controller
